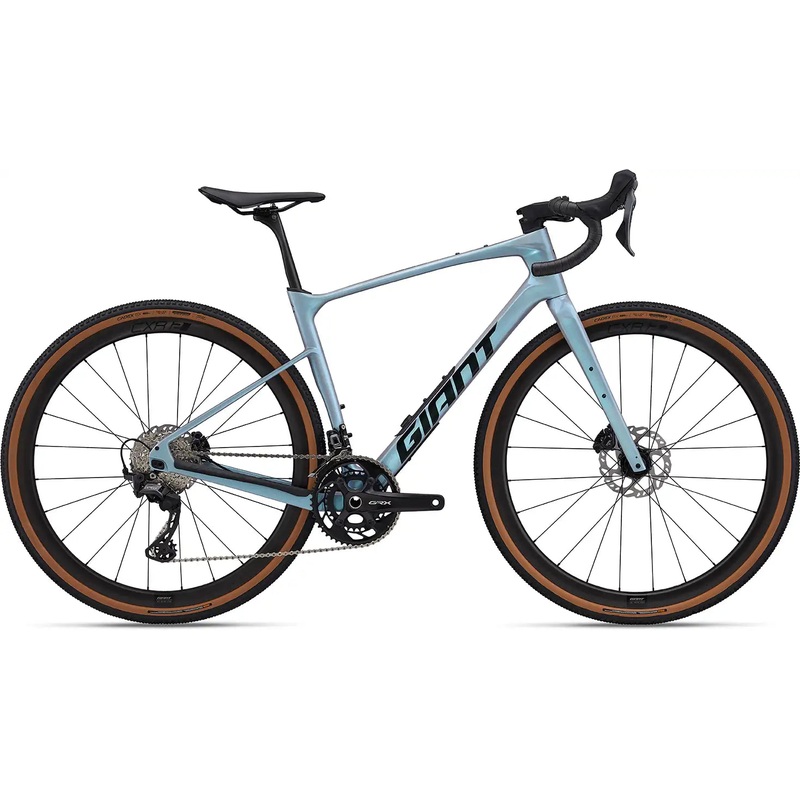

2025 Giant Revolt Advanced 3

Introduction

For those who like their gravel riding fast and free, this lightweight composite flyer lets you choose your objective: Pin on a number and go for the win, or chart a weekend adventure and discover how far you can go. With its composite frame, adjustable wheelbase, and internal storage to carry your essentials, the Revolt Advanced is ready for anything.

Colours: Panther
Sizes: XS, S, M, M/L, L, XL
Frame: Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips: Stratus Lite 3.0
Stem: Giant Contact Aerolight XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost: Giant D-Fuse, composite, 14mm offset
Saddle: Giant Approach
Pedals: N/A
Shifters: Shimano GRX RX-400, 2×10
Front Derailleur: Shimano GRX RX-400
Rear Derailleur: Shimano GRX RX-400
Brakes: Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano GRX RX-400 hydraulic
Cassette: Shimano Tiagra, 11×34
Chain: KMC X10-1
Crankset: FSA Omega, 30/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket: FSA BB-AL86
Rims: Giant P-X2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle
Spokes: Sapim
Tyres: Giant CrossCut Grip (Tan) or Maxxis Rambler TR (Black), 700x40c, tubeless
Extras: Tubeless prepared, 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position, In frame storage
