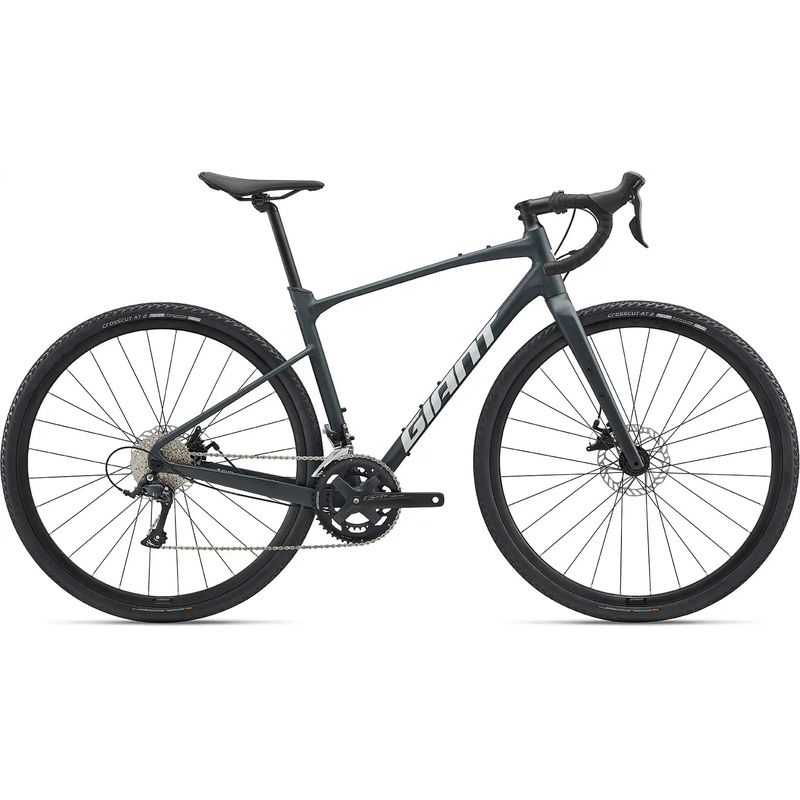

2025 Giant Revolt 2

Introduction

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.

Colours: Asphalt Green
Sizes: XS, S, M, M/L, L, XL
Frame: ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout
Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar: Giant Contact XR Ergo-Control, 31.8mm XS:4cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Grips: Cork tape with gel
Stem: Giant Sport, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost: Giant D-Fuse, alloy, 14mm offset
Saddle: Giant Approach
Pedals: N/A
Shifters: Shimano Sora, 2×9
Front Derailleur: Shimano Sora
Rear Derailleur: Shimano Sora, long cage
Brakes: Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: Shimano Sora
Cassette: Shimano HG400, 11×34
Chain: KMC X9
Crankset: FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket: Cartridge
Rims: Giant S-X2 Disc wheelset, alloy
Hubs: Giant alloy, 12mm thru-axle
Spokes: Stainless
Tyres: Giant CrossCut AT 2, 700x38c, tubeless
Extras: Tubeless prepared, 53mm max tyre size in “long” flip chip position, 45mm max tyre size in “short” flip chip position
