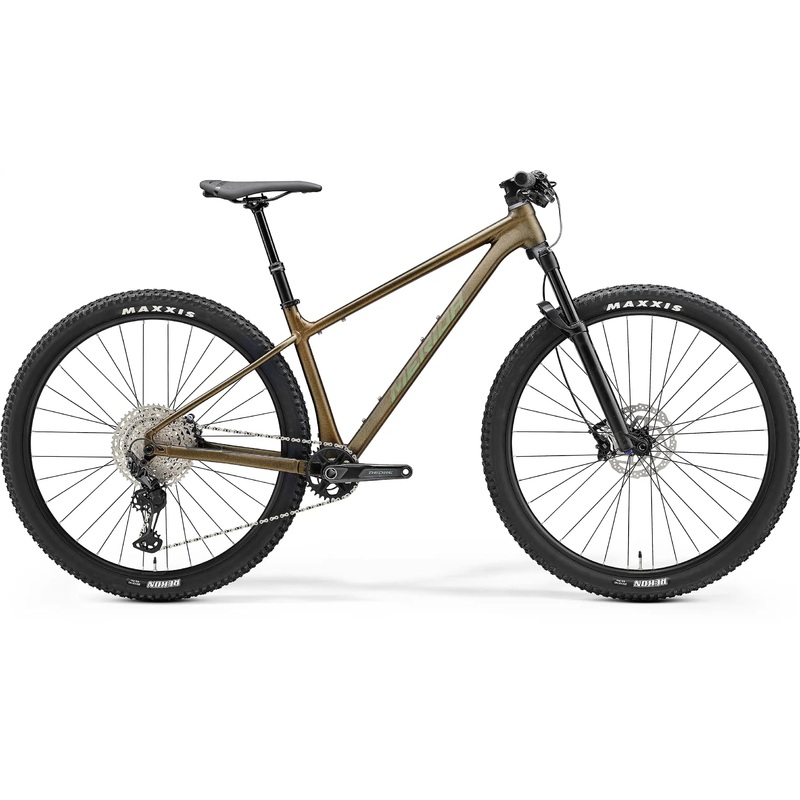

2024 Merida Big Nine TR LTD

Introduction

Blurring the line between cross-country and trail, we pair a high-value, high-performance aluminium frame with a 120 Manitou mm fork, high-volume 2.4″ tyres and a control-enhancing dropper post.

Frame: BIG.NINE LITE III; MAT aluminium; 148×12 AST; BSA BBR
Sizes: S-M-L-XL-XXL
Fork: Manitou Machete Comp; Air; 120 STR; Tapered; 44 mm fork offset
Gears: 1 x 12
Chainwheel: Shimano Deore M6100; 32 ATC
Crank Length: 170 mm-S, 175 mm-M up
Bottom Bracket: Shimano BB-MT-501; 24mm
Cassette: Shimano Deore M6100; 10-51 ATC; 12 GER
Chain: KMC X12
Derailleur-R: Shimano XT; SGS
Shifter-R: Shimano Deore M6100
Dropper Lever: Shimano SL-MT500-L
Brakes: Tektro M275; 2 piston
Rotor-F: Shimano RT10; 180mm
Rotor-R: Shimano RT10; 160mm
Handlebars: MERIDA EXPERT CC; MAT aluminium; 760 WHB; flat
Stem: MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD
Stem Length: S, M, L 60 mm – XL, XXL 70 mm
Head Set: ACROS ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing
Seat Post: MERIDA EXPERT TR; 30.9 DSP; 0 SSB; XS 100 SPT – S 125 SPT – M 150 SPT – L/XL 170 SPT
Saddle: MERIDA COMP SL; V-mount; incl. MERIDA minitool
Hub-F: Shimano TC500-B; 110×15 WHF; 32 SPH; Centerlock
Hub-R: Shimano TC500-MS-B; 148×12 WHR; 32 SPH; Centerlock
Axle-R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Spokes: Black stainless
Rims: MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready
Tyres: Maxxis Rekon; 29×2.4″; wire
Pedals: not included
Other: MERIDA Multitool with saddlebox
Max. Rider Weight: 135kg
