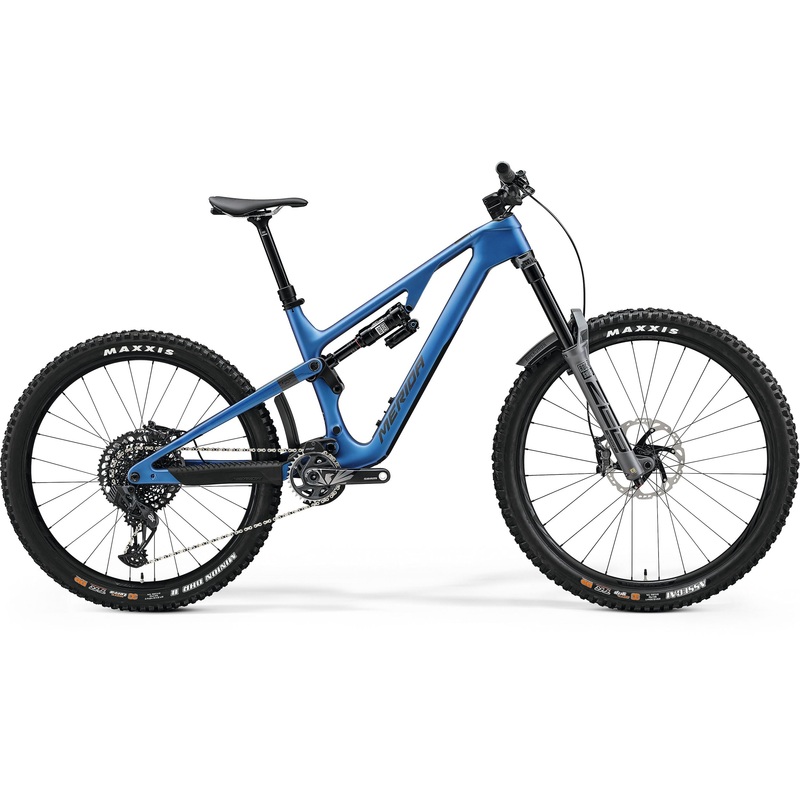

2022 Merida One Sixty 8000

Introduction

The privateers choice. Top-end carbon frame with radical enduro geometry paired to high-performance, high-value components that are ready to tip up the race track or tear down any trail.

Frame: ONE-SIXTY CF4 III; 171 STR mullet / 162 STR 29″; MAT carbon; 29×2.5″ max. WHS; 148×12 AST; BSA BBR
Sizes: Short-Mid-Long-XLong
Fork: Rock Shox Zeb Ultimate; Air; 170 STR; Tapered; 42mm fork offset; 29×2.8″ max. WHS
Shock: Rock Shox Super Deluxe Ultimate; platform; adjustable low speed compression; plateform
Gears: 1 x 12
Crankset: Sram X1 Carbon; 32 ATC
Crank Length: 170 mm-S up
Bottom Bracket: Sram BB DUB PF MTB 92
Cassette: Sram GX; 10-52 ATC; 12 GER
Chain: Sram GX
Rear Derailleur: Sram GX Eagle AXS
Shifter – Front: n/a
Shifter – Rear: Eagle GX AXS Controller
Dropper Lever: Shimano SL -MT800-IL
Brake – Front: Shimano XT; 4 piston
Brake – Rear: Shimano XT; 4 piston
Rotor – Front: Shimano RT86; 203 mm
Rotor – Rear: Shimano RT86; 203 mm
Handlebar: MERIDA TEAM TR; MAT aluminium; 780 WHB; XS/S 18 RHB; M/L/XL 30 RHB
Stem: MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD
Stem Size: 40 mm all sizes
Head Set: MERIDA-8151 1-1/8″-1.5″ cartridge bearing set
Seat Post: MERIDA TEAM TR; 34.9 DSP; 0 SSB; all sizes 30-230 SPT
Saddle: MERIDA EXPERT SL; V-mount; incl. MERIDA minitool
Spokes: attached
Hub – Front: attached
Hub – Rear: attached
Axle – Rear: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
Rims: Race Face Turbine R30; 110×15 WHF; 148×12 WHR; 28 IWR; Centerlock; Sram XD; MAT aluminium; Tubeless ready (tubeless tape and valves included); Lifetime warranty
Tyre – Front: Maxxis Assegai; 29×2.5″; fold; TR EXO+ 3C MaxxGrip
Tyre – Rear: Maxxis DHR; 27.5×2.4″ XS/S/M 29×2.4″ L/XL; fold; TR DD 3C MaxxTerra
Bottle Cage: Fidlock Integrated Base & TWIST Bottle 600
Fender: AC FENDER ZEB SHORT 3 BOLT BLACK
E-Shift Parts: EP POWERPACK 1 BATTERY
Other: MERIDA Multitool with saddlebox
Max Rider Weight: 135kg
